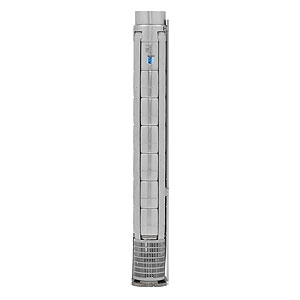

250 mm well size (10”) Submersible Borehole Pump

Our submersible borehole pumps are made with anti-corrosive material with high wear resistance resulting in reduction in running costs and higher pumping efficiency and longevity. The pump can work continuously for a longer period of time without any trouble.

Key Features

Feature

High operating efficiency

Highly durable &

Hygienic

Good resistance to

sand

Can be easily

dismantled and repaired

Can handle upthrust

load

Impeller

SS304 (optional SS316)

Difusser

SS304 (optional SS316)

Shaft

SS316

Product Specification

Model : 8” bore hole pump (QF125-QF160)Model 10” bore hole pump (QF210-QF270)
To suit well screen (V) : 8inch/200mm10inch/250mm
Flow (m³/hr) : 77-95125-160
Max Head (m) : 440-420500-480
Discharge outlet (inches) : 66

Downloads

Accessories

PX22 35KW ASD STARTER PANEL
VARIABLE PANEL 18KW TO 56KW
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ LAYFLAT HOSE PER METRE
6″ BLUE LAYFLAT X 25M CW BAUERS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON RETURN VALVE
8″ 3M W/A BAUER HOSE
8″ X 6M POLYTUBE BAUER DELIVERY
8″ 20FT STEEL PIPE
8″ 45* BAUER BEND
8″ 90* BEND
8″ GATEVALVE
8″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
ROAD CROSSING C/W 8″ PN16 FLANGES

Environments

Dewatering applications
Irrigation, Domestic water supply
Fountains, Industrial water supply
Pressure boosting units, ponds
Mining
