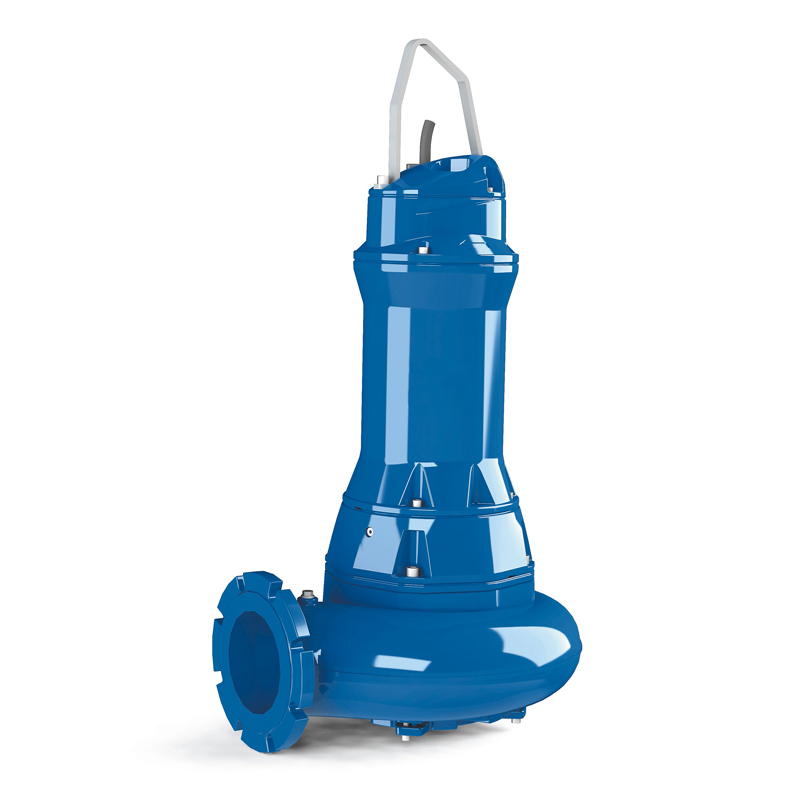

XFP150G Electric Submersible Wastewater Pumps

The XFP150G is a medium-sized 6” electric submersible wastewater pump designed to provide clients with a robust solids handling solution and is capable of operating at heads of up to 27 metres. Delivering a maximum flow of 94 litres per second, the pump has been manufactured for use in a broad spectrum of environments that typically include municipal and utility applications. Each unit is fitted with a 20m cable enabling flexible installation, with an automatic control feature ensuring it will only operate when required.

Key Features

Feature

Contrabloc Impeller provides blockage

free operation

Double mechanical seals

for maximum abrasive resistance

Premium Efficiency IE3 motor

for reduce energy consumption

Simple design allows

minimal service and maintenance

Easily portable so

can be positioned quickly

Motor protection reduces

the risk of damage

Flexible configuration suitable

for both wet & dry installations

No vibration allows

smooth running and constant flows

Product Specification

Motor type : 415 V
Motor rating : 16 kW
Max power input : 17.4 kW
Running current : 33.1 A
Discharge spigot : 6″
Maximum solids : 100 mm
EX Rated : Yes
Cooling jacket : Yes
Dimensions (H x W) : 1300 x 495 / 615 mm
Guide rail option Height : 1300 mm
Maximum Width : 615 mm
Minimum Width : 495 mm
Free standing Height : 1470 mm
Maximum Width : 1000 mm
Minimum Width : 630 mm
Weight : 370 kg

Downloads

Accessories

VARIABLE PANEL 18Kw – 56Kw
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON-RETURN VALVE
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping networks
Sewage
Manufacturing and industry
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utility industries
