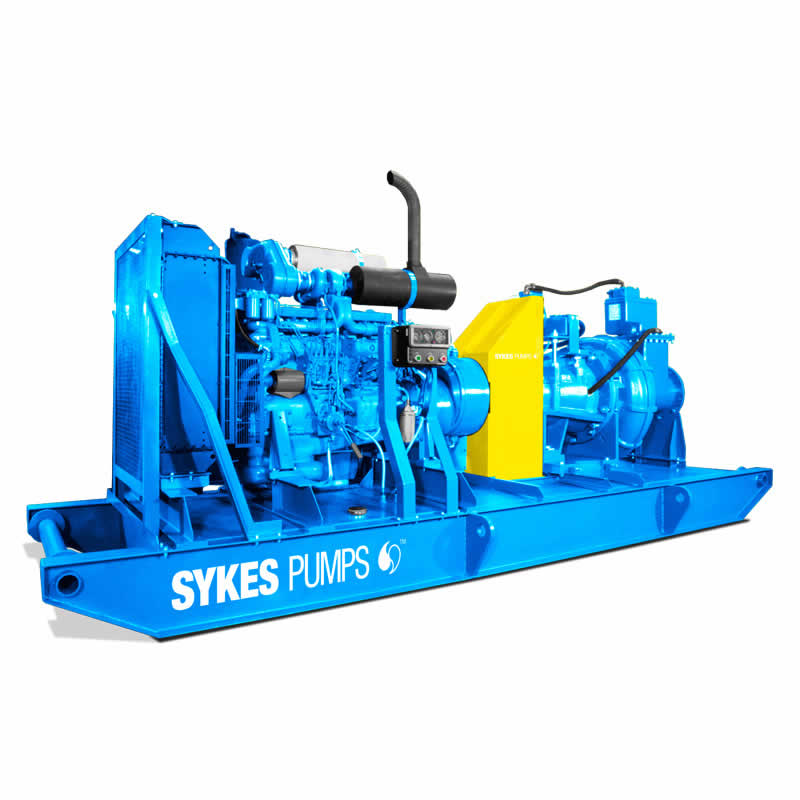

UVO 200/150F (D90) Medium & High Head

The UVO 200/150F (D90) is a hard iron pump intended for the most arduous high head duties and combines impressive pumping performance with sustained high efficiency and total reliability. All wet end components are manufactured from a high chrome iron alloy to provide excellent abrasion and corrosion resistance. Giving a maximum head of 135 metres and flows of up to 375 litres per second, the UVO 200/150F is driven by an industry leading diesel engine that meets all EU emission control standards. This unit requires an independent fuel tank and comes on a skid mounted chassis to simplify the unloading and installation process.

Key Features

Feature

Hours of unattended

operation for continuous use

Hard

wearing parts for robust applications

Automatic priming and re

priming for maximum efficiency

Solids handling of

up to 60 mm

Silenced option available

Electric start for

swift functionality

Economical operation for

greater fuel efficiency

Simple to maintain

Standard open

set unit

Product Specification

Performance : Max head
Weight : 8680 kg with fuel
6570 kg without fuel
Dimensions (L x W x H) : 5330 x 2385 x 2167 mm
Fuel capacity : Tank size on application, separate bunded tanks available.
Pipe connections : Suction
Fuel Consumption : Full load @ 1600 rpm
Energy Efficient duty point : Fuel Consumption @ 1500 rpm

Downloads

Accessories

8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ FLANGED HIGH PRESSURE HOSE X 6MTS
6″ FLANGED HIGH PRESSURE HOSE X 6MTS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ FLANGED NP16 90* BEND
6″ FLANGED NP16 GATEVALVE
6″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Quarries and mines
Environmental
Emergency pumping services
Docks, ports and harbours
Local authorities
Manufacture and industry
Power stations
Tunnelling
Refineries
Construction
