UVO 150/100E Medium & High Head

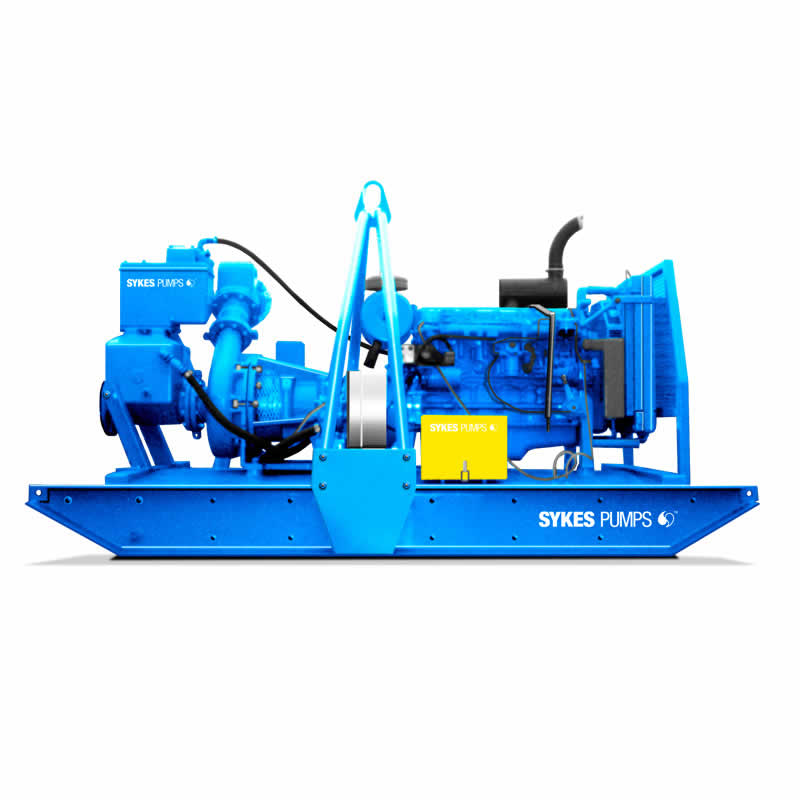

The UVO 150/100E is a hard iron pump specifically designed for the most arduous duties and has a unique combination of features that provide impressive performance, sustained high efficiency and total reliability. All wet end components are manufactured from a high chrome iron alloy to provide excellent abrasion and corrosion resistance. Producing a maximum head of 93 metres and flows of up to 120 litres per second, the UVO 150/100E is driven by an efficient diesel engine that meets all EU emission control standards.

Key Features

Feature

Hours of unattended

operation for continuous use

Hard

wearing parts for robust applications

Automatic priming and re

priming for maximum efficiency

Solids handling of

up to 38 mm

Silenced option available

Electric start for

swift functionality

Economical operation for

greater fuel efficiency

Simple to maintain

Central and 4

point lifting

Product Specification

Performance : Max head
Weight : 3750 kg with fuel
3400 kg without fuel
Dimensions (L x W x H) : 3505 x 1608 x 1977 mm
Fuel capacity : Various integral fuel tanks
Pipe connections : Suction
Fuel Consumption : Full load @ 1800 rpm
Energy Efficient duty point : Fuel Consumption @ 1500 rpm

Downloads

Accessories

6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ FLANGED HIGH PRESSURE HOSE X 6MTS
4″ FLANGED HIGH PRESSURE HOSE X 6MTS
4″ X 6MTR STEEL BAUER PIPE
4″ FLANGED 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Quarries and mines
Environmental
Emergency pumping services
Docks, ports and harbours
Local authorities
Manufacture and industry
Power stations
Tunnelling
Refineries
