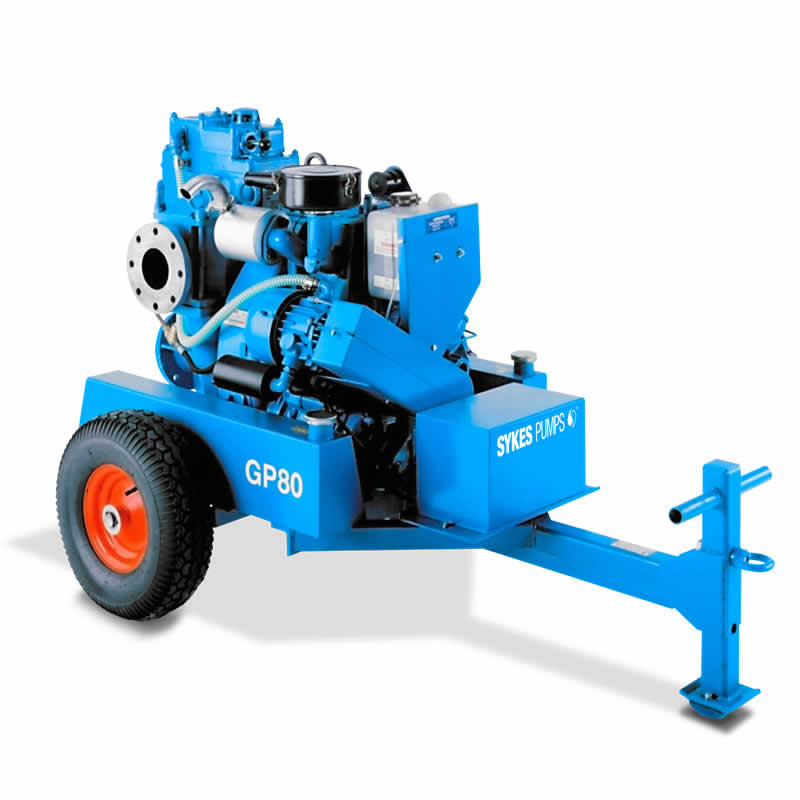

GP 80 General Purpose Pump

The GP 80 is typically a contractor’s general purpose pump capable of delivering flows up to 34 litres per second and a maximum head of 24 metres. Used wherever there’s a need for reliable automatic self-priming, the GP 80 incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 80 is powered by a 6.7kW Lister engine and is available on a robust 2 wheeled site chassis.

Key Features

Feature

Feature

Hours of unattended operation

for continuous use

Hard wearing parts

for robust applications

Automatic priming and re-priming

Compact and manoeuvrable

for simple redeployment

40 mm

solids handling

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Standard open set unit

Product Specification

  • Performance : Max head: 24 m
    Max flow: 34 l/s
    Max solid: 40 mm
  • Weight : 455 kg with fuel
    425 kg without fuel
  • Dimensions (L x W x H) : 1700 x 1190 x 1093 mm
  • Noise level : @ 1m = 95-98 dBA
    @7m = 78 – 82 dBA
  • Fuel capacity : 35 litres.
    Max 24 hours with cleaning and flushing facilities
  • Pipe connections : Suction: 4″ table D
    Discharge: 4″ table D
    Bauer couplings option: 3″
  • Fuel Consumption : Full load @ 1800 rpm: 1.9 litres/ho
  • Energy Efficient duty point : Fuel Consumption @ 1500 rpm: duty point: 0.61 litres/hour

Accessories

  • 3″ SPLIT INTAKE
  • 3″ 20FT W/A SUCTION HOSE BAUER
  • 3″ 20FT POLYTUBE
  • 3″ X 6M HELIFLEX PVC BAUER HOSE
  • 3″ LAYFLAT HOSE PER METRE
  • 3″ BLUE LAYFLAT X 25M CW BAUERS
  • 3″ 90* BEND
  • 3″ GATEVALVE
  • 3″ NON RETURN VALVE
  • BUNDED FUEL TANK 1000 LITRE
  • RETAIL GAS OIL
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • ROAD RAMP C/W 6″ PN16 FLANGES
  • ROAD RAMP WIDE C/W 6″ PN16 FLANGES

Environments

  • Environmental
  • Emergency Pumping Services
  • Docks, Ports and Harbours
  • Refineries
  • Water and Waste Treatment
  • Local Authorities
  • Over-pumping
  • Offshore and Float Outs
  • Quarries and Mines
  • Building and Construction
  • Manufacture and Industry
  • Power Stations
  • Tunnelling
  • Construction projects
